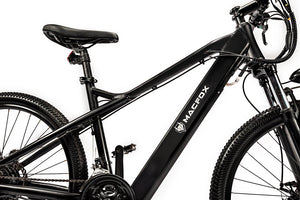

Macfox Electric Bike

SKU: ASACC00143


  Free Shipping - Ship out in 1 business day. 2 - 8 days to your door.

secure-payment


Type: Unknown Type


Macfox Electric Bike

KEY FEATURES:

  • Average range 30+ Miles;
  • 20 MPH Top speed;
  • 21 speed gear
  • payload capacity: 300 lbs
  • For Rider: 4.9 to 5.8 FT

Description

  • Powerful Motor-The Bafang 350W brushless motor boosts the bike to a top speed of 20mph (32kph). It’s a high-performance motor you can really depend on.
  • Pedal-Assist & Throttle Modes-Get some exercise and enjoy your cycling without overdoing it. Five levels of pedal assistance give you the right amount of support as you ride (to cycle without assistance, switch to level 0 or turn off the power). When you don’t want to pedal at all, just twist the throttle for powerful all-electric propulsion.
  • Front Suspension and Dual Disc Brakes-The durable aluminum alloy frame is complemented by a front suspension fork for a smoother and more comfortable riding experience. Mechanical disc brakes provide stronger, more responsive braking for safe stopping in all weather conditions.
  • Shimano 21-Speed Gear System-Tackle any terrain with efficiency and ease. You’ll always have the right gear, even if you ride without power assistance.

Electrical Components

  • MOTOR
    Bafang G020 36V, 350W Brushless hub motor 20mph. Max. Torque 50Nm
  • DISPLAY
    LCD Smart Display with Backlight
  • BATTERY
    Removable Lithium-ion 36V,10.4Ah(374.4Wh)
  • SENSORS
    Double hall 12 pulse Speed Sensor

Mechanical  Components

T5 FRAME AL6061
T5 Frame AL6061 With Removeable Battery Pak
 FORK
Aluminum shoulder cover anode black. Standard installation method no break stud, 25.4mm*28.6mm, 40mm distance
HANDLEBARS
Steel Width 620mm, 22.2mm*1.8T,H=30mm
 THROTTLE
Thumb Throttle on Handlebars
LEFT SHIFTER
SHIMANO SL-TX30-LN
 RIGHT SHIFTER
SHIMANO SL-TX30-7R
SHIFT LEVER
21-Speed, Front 3-Speed, Rear 7-Speed
 BRAKES
Standard installation aluminum disc Brakes,configurate 160mm disc
FRONT DERAILLEUR
SHIMANO FD-TZ500 3-Speed
 REAR DERAILLEUR
SHIMANO RD-TZ500 7-Speed
FRONT HUB
3/8" * 100mm*108mm,14G*36H, Distance 108mm
CASSETTE
SHIMANO MF-TZ500-7 7-paned fixed
CARANKSET
Three-paned cranks, 1/2*3/32*24T*34T*42T*170mm
 PEDALS
9/16‘ Iron&Plastic Platform
SPOKES
Front: Black Stainless 14 Gauge
Rear: Black stainless 13 Gauge
 RIM
Double layers, Aluminum Front & Rear 26*1.75*14G*36H,no rivet holes H=20.5mm
TUBES
Butyl Rubber, Schrader Valve 26x1.95-2.125 H=40mm

 TIRES
26" x 1.95" mountbike hard edge tire

SEAT
Steel Rails, 245mm wide
 SEATPOST
∮27.2mm*300mm,With safety wire and blk clamp
KICKSTAND
Adjustable two-point collateral
 CHAIN
PPO joint, 1/2"*3/32" 7 speed chain steel grey/bronze


 Package Lists

  •  1 x Electric Bike
  • Basic Tool Kit
  • User Manual
